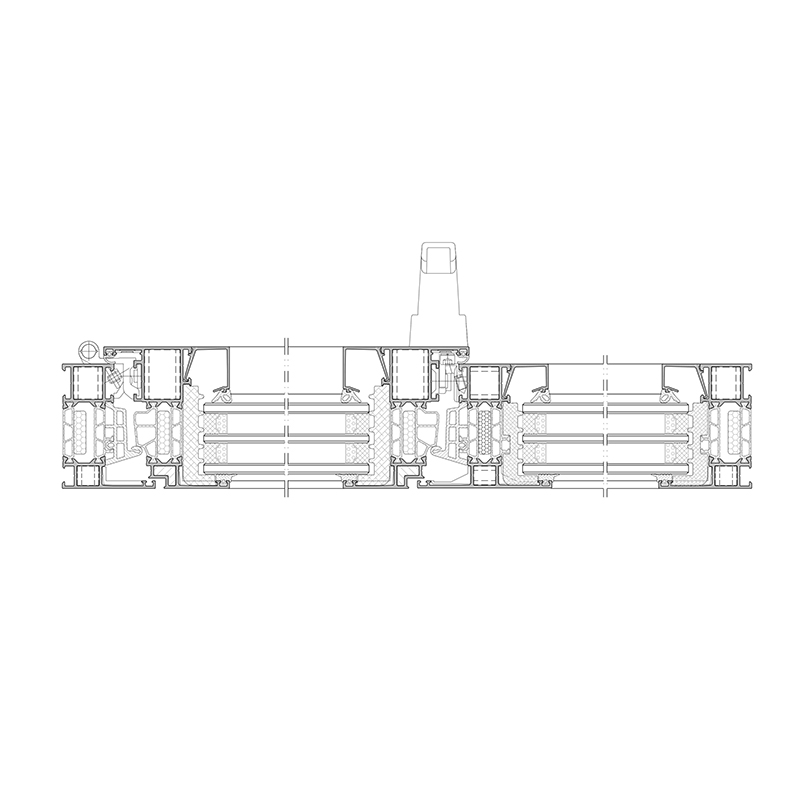

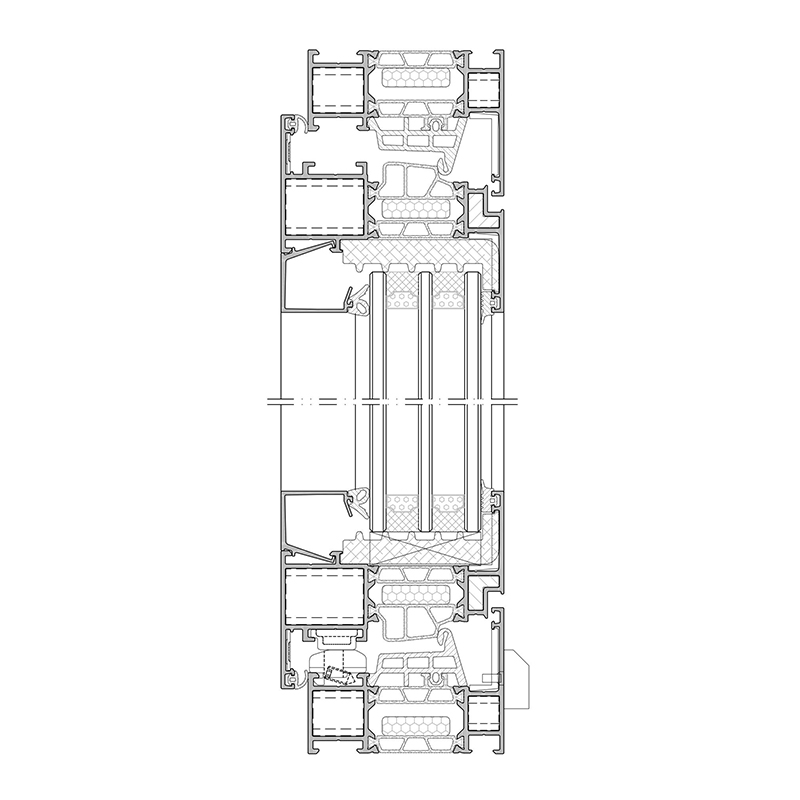

JH-W Window System
Feature
Product Type: JH-W Window System
Mullion Width: 55/60/70 mm
Glass Thickness: 6-54 mm
Thermal Performance: For the JH-W70 model, the unit width is 2,000 mm, the unit height is 2,000 mm. Glass thermal transmittance (Ug) is 0.8 W/(m²·K), corresponding to the system thermal transmittance (Uw) of 1.4 W/(m²·K).
Acoustic Performance: 36 dB with double insulating glass
Air Permeability Performance: BS EN 12207 Class 3; GB/T 7106 Class 8
Static Watertightness Performance: BS EN 12208 E1000
Dynamic Watertightness Performance: BS EN 12208 E1000; GB/T 7106 Class 6
Share:

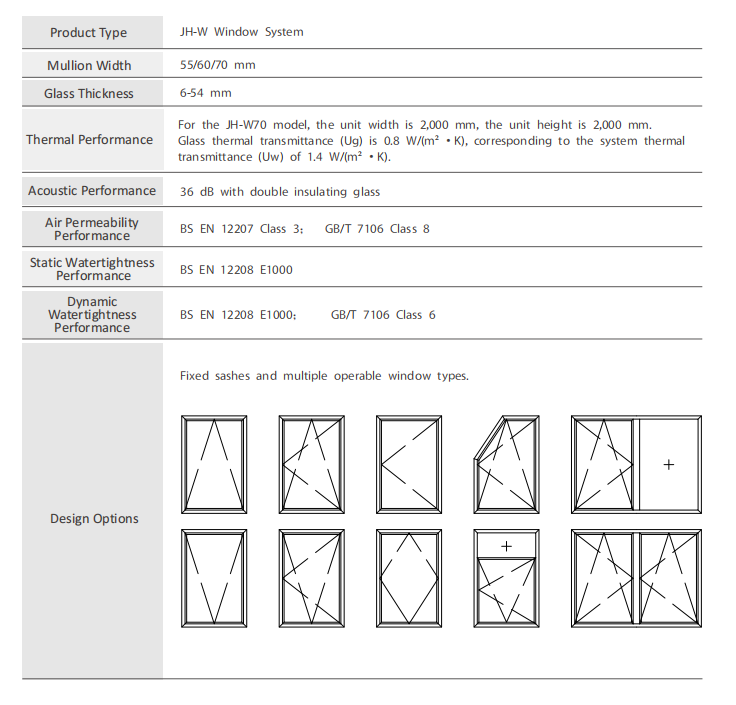

Product Parameters
