Home / Business / D&S Model / Standardized Product Center

Standardized Product Center

Curtain wall systems are non-structural exterior cladding solutions designed to protect buildings from weather while enhancing aesthetics, energy efficiency, and occupant comfort. Widely used in high-rise buildings, commercial towers, hotels, airports, hospitals, and mixed-use developments, curtain wall systems have become an essential component of modern architectural design.

As a professional curtain wall company and experienced facade company, we provide complete curtain wall engineering, fabrication, and installation solutions tailored to project requirements. Our advanced systems combine architectural elegance with structural performance, delivering durable and energy-efficient building envelopes for projects worldwide. JANGHO offers a comprehensive range of products with performance validated through rigorous testing, covering all types of architectural curtain wall systems.



Types of Curtain Wall Systems



Unitized Curtain Wall System

Unitized curtain walls are pre-assembled in a factory and delivered to the project site as complete modules.

Advantages

  • Faster installation
  • Superior quality control
  • Reduced on-site labor
  • Improved project schedule

Applications

  • High-rise buildings
  • Commercial towers
  • Large-scale developments



Stick Curtain Wall System

Stick-built systems are assembled on-site using individual framing components and glass panels.

Advantages

  • Cost-effective for smaller projects
  • Flexible design modifications
  • Easier transportation

Applications

  • Mid-rise commercial buildings
  • Educational facilities
  • Office buildings



Semi-Unitized Curtain Wall System

Combines the benefits of stick and unitized systems.

Advantages

  • Faster installation than stick systems
  • Lower transportation costs than full unitized systems
  • Flexible project management



Structural Glazing Curtain Wall

Structural silicone glazing creates a seamless glass appearance with minimal visible framing.

Benefits

  • Modern aesthetics
  • Maximum daylight penetration
  • Enhanced visual appeal



Key Features of Our Curtain Wall Systems

• Superior Structural Performance

• High Energy Efficiency

• Excellent Weather Resistance

• Architectural Flexibility

• Sustainable Building Solutions



Our Curtain Wall Design & Engineering Services

We provide complete project support including:

Facade Design

Customized solutions for architects and developers.

Structural Engineering

Wind load and structural calculations.

BIM Modeling

Accurate digital coordination throughout project phases.

Fabrication Services

Precision manufacturing by experienced curtain wall fabricators.

Installation Support

Technical guidance and project management assistance.



Our advanced facade systems are designed to meet the highest standards of modern architecture, combining aesthetics, energy efficiency, and structural performance.

As a professional manufacturer of curtain wall system solutions, we provide customized architectural curtain wall systems for commercial buildings, high-rise towers, hotels, airports, and mixed-use developments. Each architectural curtain wall is engineered to deliver superior weather resistance, thermal insulation, and long-term durability. Our comprehensive range of curtain wall products includes unitized curtain walls, stick-built curtain walls, structural glazing systems, aluminum facade panels, and custom building envelope solutions tailored to project-specific requirements.

Read More

JH-U Unitized Curtain Wall JH-S Stick Curtain Wall JH-UW Unitized Window Wall JH-G Steel Framing Curtain Wall JH-W Window System JH-B Balustrade System JH-L Louver System JH-M Metal Cladding Wall JH-NMS Stone Cladding Wall JH-BIPV Photovoltaic Module

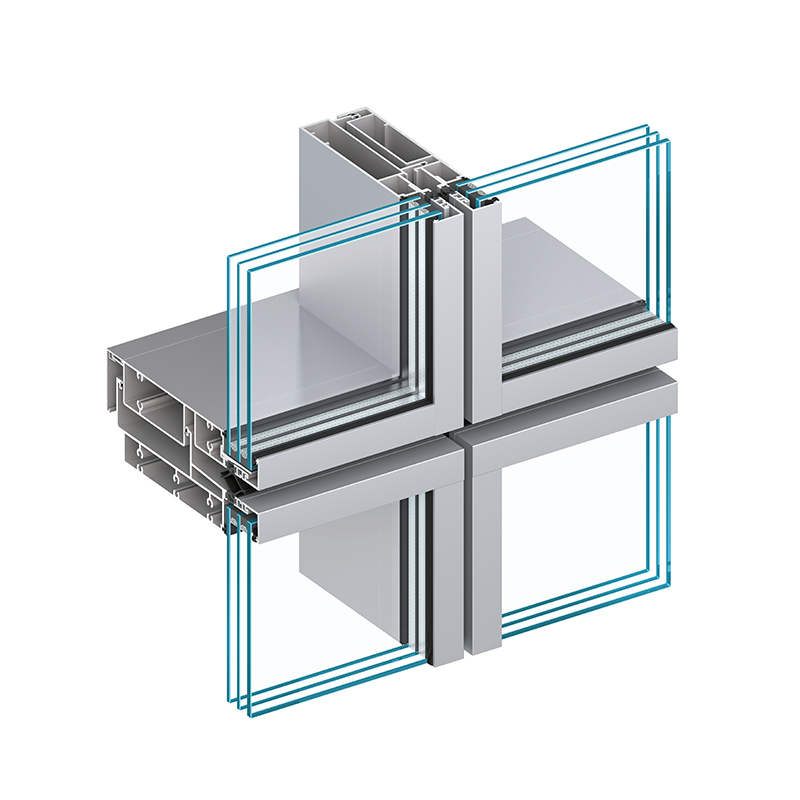

JH-U Unitized Curtain Wall (Exposed Framing)

JH-U Unitized Curtain Wall (Exposed Framing)

Product Type: JH-U Unitized Curtain Wall (Exposed Framing)

Mullion width: 65/80/100 mm

Glass Thickness: 6-54 mm

Thermal Performance: For the JH-U80 model, the unit width is 1,800 mm, the unit height is 4,400 mm, and the inter-floor height is 1,100 mm.
Glass thermal transmittance (Ug) is 0.8 W/(m²·K), corresponding to the system thermal transmittance (Uw) of 1.3 W/(m²·K).

Air Permeability Performance: EN 12152/12153, Class A4;  ASTM E283, compliant;  GB/T 15227, Class 4

Static Watertightness Performance: BS EN 12154/12155, RE 1000;  ASTM E331, 1000Pa, Compliant

Dynamic Watertightness Performance: BS EN 13050, 500Pa/1500Pa;  AAMA 501.5, Compliant;  GB/T 15227, Class 5

Inquire Now
JH-U Unitized Curtain Wall (Exposed Framing - High Thermal Performance)

JH-U Unitized Curtain Wall (Exposed Framing - High Thermal Performance)

Product Type: JH-U Unitized Curtain Wall (Exposed Framing - High Thermal Performance)

Mullion Width: 80/100 mm

Glass Thickness: 30-70 mm

Thermal Performance: For the JH-U80 model, the unit width is 1,800 mm, the unit height is 4,400 mm, and the inter-floor height is 1,100 mm. Glass thermal transmittance (Ug) is 0.7 W/(m²·K), corresponding to the system thermal transmittance (Uw) of 1.0 W/(m²·K).

Air Permeability Performance: EN 12152/12153, Class A4;  ASTM E283, Compliant;  GB/T 15227, Class 4

Static Watertightness Performance: BS EN 12154/12155, RE 1000; ASTM E331, 1000Pa, Compliant

Dynamic Watertightness Performance: BS EN 13050, 500Pa/1500 Pa;  AAMA 501.5, Compliant;  GB/T 15227,Class 5

Inquire Now
JH-U Unitized Curtain Wall (Hidden Framing)

JH-U Unitized Curtain Wall (Hidden Framing)

Product Type: JH-U Unitized Curtain Wall (Hidden Framing)

Mullion Width: 65/80/100 mm

Glass Thickness: 6-54 mm

Thermal Performance: For the JH-U80 model, the unit width is 1,800 mm, the unit height is 4,400 mm, and the inter-floor height is 1,100 mm. Glass thermal transmittance (Ug) is 0.8 W/(m²·K), corresponding to the system thermal transmittance (Uw) of 1.5 W/(m²·K).

Air Permeability Performance: EN 12152/12153, Class A4;  ASTM E283, Compliant;  GB/T 15227, Class 4

Static Watertightness Performance: BS EN 12154/12155, RE 1000;  ASTM E331, 1000Pa, Compliant

Dynamic Watertightness Performance: BS EN 13050, 500Pa/1500 Pa;  AAMA 501.5, Compliant;  GB/T 15227, Class 5

Inquire Now
JH-S Stick Curtain Wall (Exposed Framing)

JH-S Stick Curtain Wall (Exposed Framing)

Product Type: JH-S Stick Curtain Wall (Exposed Framing)

Mullion Width: 50/60/80 mm

Glass Thickness: 6-60 mm

Thermal Performance: For the JH-S60 model, the unit width is 1,500 mm, the unit height is 4,000 mm, and the inter-floor height is 1,000 mm. Glass thermal transmittance (Ug) is 0.8 W/(m²·K), corresponding to the system thermal transmittance (Uw) of 1.23 W/(m²·K).

Air Permeability Performance: EN 12152/12153, Class A4;  ASTM E283, Compliant;  GB/T 15227, Class 4

Static Watertightness Performance: BS EN 12154/12155, RE 1000;  ASTM E331, 1000Pa, Compliant

Dynamic Watertightness Performance: BS EN 13050, 500Pa/1500 Pa;  AAMA 501.5, Compliant;  GB/T 15227, Class 5

Inquire Now

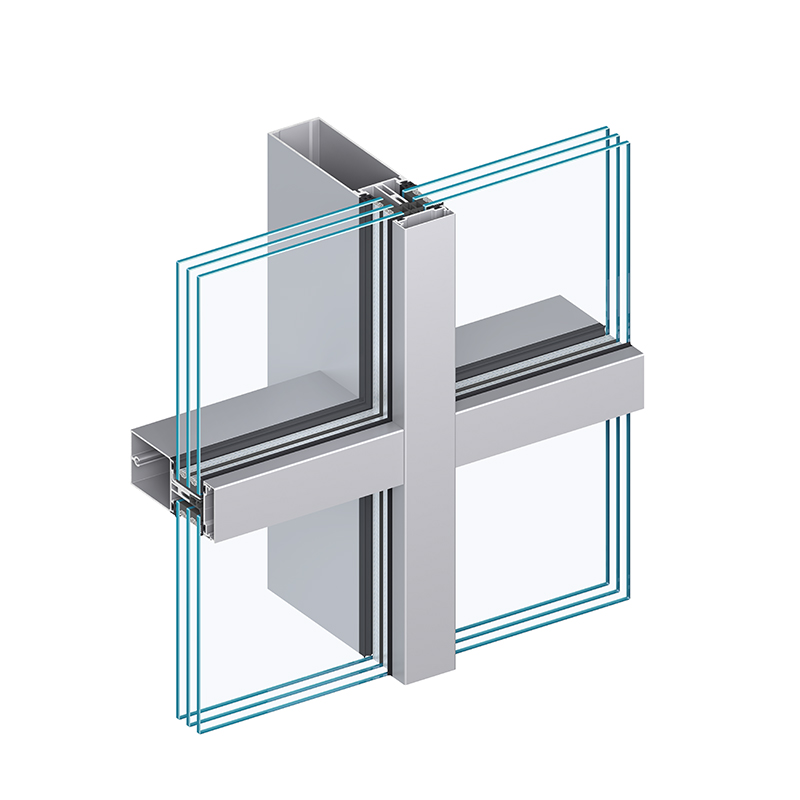

JH-S Stick Curtain Wall (Exposed Framing-High Thermal Performance)

JH-S Stick Curtain Wall (Exposed Framing-High Thermal Performance)

Product Type: JH-S Stick Curtain Wall (Exposed Framing - High Thermal Performance)

Mullion Width: 60/80 mm

Glass Thickness: 30-70 mm

Thermal Performance: For the JH-S60 model, the unit width is 1,500 mm, the unit height is 4,000 mm, and the inter-floor height is 1,000 mm. Glass thermal transmittance (Ug) is 0.7 W/(m²·K), corresponding to the system thermal transmittance (Uw) of 1.0 W/(m²·K).

Air Permeability Performance: EN 12152/12153, Class A4;  ASTM E283, Compliant;  GB/T 15227, Class 4

Static Watertightness Performance: BS EN 12154/12155, RE 1000;  ASTM E331, 1000Pa, Compliant

Dynamic Watertightness Performance: BS EN 13050, 500Pa/1500 Pa;  AAMA 501.5, Compliant;  GB/T 15227, Class 5



Inquire Now

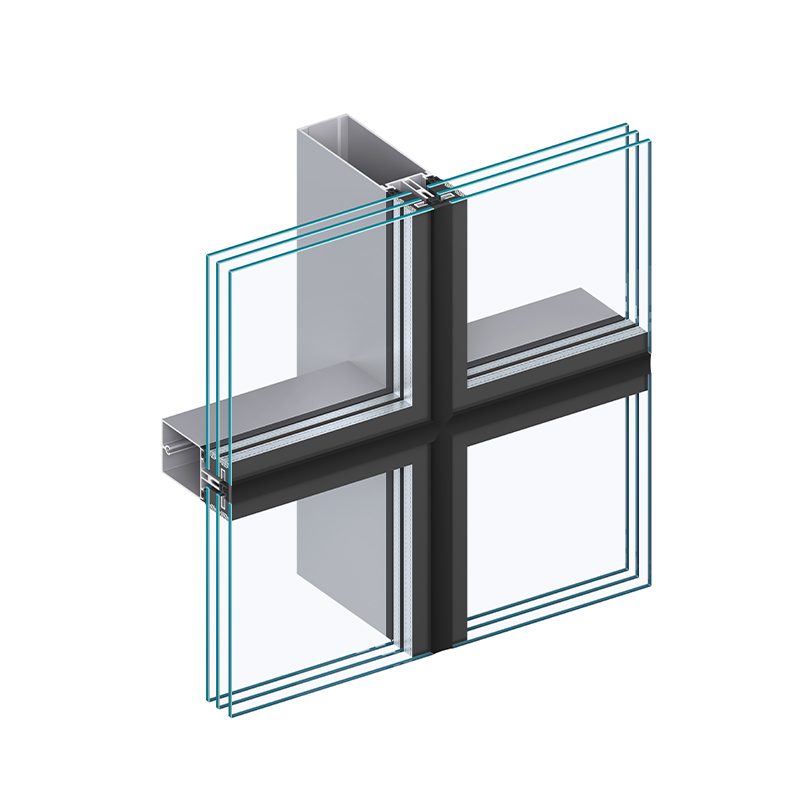

JH-S Stick Curtain Wall (Hidden Framing)

JH-S Stick Curtain Wall (Hidden Framing)

Product Type: JH-S Stick Curtain Wall (Hidden Framing)

Mullion Width: 50/60/80 mm

Glass Thickness: 6-60mm

Thermal Performance: For the JH-S60 model, the unit width is 1,500 mm, the unit height is 4,000 mm, and the inter-floor height is 1,000 mm. Glass thermal transmittance (Ug) is 0.8 W/(m²·K), corresponding to the system thermal transmittance (Uw) of 1.38 W/(m²·K).

Air Permeability Performance: EN 12152/12153, Class A4;  ASTM E283, Compliant;  GB/T 15227, Class 4

Static Watertightness Performance: BS EN 12154/12155, RE 1000;  ASTM E331, 1000Pa, Compliant

Dynamic Watertightness Performance: BS EN 13050, 500Pa/1500 Pa;  AAMA 501.5, Compliant;  GB/T 15227, Class 5

Inquire Now
